Microscope

• Color
• Black

• Drawtube
• Monocular

• Eyepieces
• 10 X & 15 X

• Illumination
• Day Light Reflector & LED

• Magnification
• 100 x to 675 x

• Product Type
• Microscope

• Theory
• Biological Microscope

• Color
• Black And White

• Material
• Mild Steel

• Product Type
• Microscope

• Usage
• Laboratory

• Voltage
• 110-220 Volt (v)

• Color
• Black And White

• Product Type
• Microscope

• Usage
• Laboratory

• Voltage
• 220-380 Volt (v)

• Coarse Adjustment Range
• 13 mm coarse movement with tension adjustment.

• Dimensions
• Approx. 260 x 400 x 480 mm (L x W x H). Millimeter (mm)

• Drawtube
• Other, Trinocular head for simultaneous viewing and camera attachment.

• Eyepiece Tube
• Inclined at 45, 360 rotatable; interpupillary adjustable.

• Fine Adjustment Range
• Up to 2 m per division for fine focusing.

• Focus System
• Coaxial coarse and fine adjustment with tension control.

• Frame Rate
• Dependent on camera used; typically up to 30 fps for standard CMOS.

• Image Format
• Supported formats depend on connected camera (e.g., JPEG, BMP, TIFF).

• Interface
• Camera port on trinocular head for digital imaging. Mechanical XY stage interface for vessel positioning.

• Interpupillary Distance
• Adjustable from 50 mm to 75 mm. Millimeter (mm)

• Objective Achromatic
• Long working distance (LWD) achromatic objectives: 4x, 10x, 20x, 40x (S).

• Resolution
• Optical resolution: Up to 800 lines/mm depending on objective; digital resolution dependent on camera used.

• Sensor
• Compatible with standard CMOS/CCD microscope cameras (camera not included).

• Still Image Capture Resolution
• Dependent on camera; up to 8MP supported with appropriate camera.

• Theory
• Other, Inverted tissue culture microscope designed for detailed observation of living tissue specimens in culture vessels, petri dishes, and flasks.

• Video Capture Resolution
• Dependent on camera; up to 1920x1080p supported.

• View Head
• Trinocular head for eyepiece viewing and camera mounting.

• Coarse Adjustment Range
• 45mm travel.

• Condenser
• Not required for stereo microscopes.

• Dimensions
• Approx. 300mm (H) x 280mm (W) x 250mm (D). Millimeter (mm)

• Drawtube
• Other, Binocular, inclined at 45 for comfortable viewing.

• Eyepiece Tube
• Binocular tube, 45 inclined, 360 rotatable.

• Eyepieces
• WF10x/20mm wide field paired eyepieces (other options available).

• Fine Adjustment Range
• Not generally applicable to stereo models; focus is via coarse adjustment.

• Focal Distance
• Approximately 100mm (varies with objective). Millimeter (mm)

• Focus Range
• About 45mm total focusing range. Millimeter (mm)

• Focus System
• Rugged rack and pinion mechanism for precise focusing.

• Interpupillary Distance
• Adjustable from 55mm to 75mm. Millimeter (mm)

• Resolution
• Depends on eyepiece and objective, typically optical resolution up to 200 lp/mm.

• Spare Parts
• Eyepieces, objectives, focus knob, stage clips, LED lamps.

• View Head
• Binocular, 45 inclined, adjustable angle.

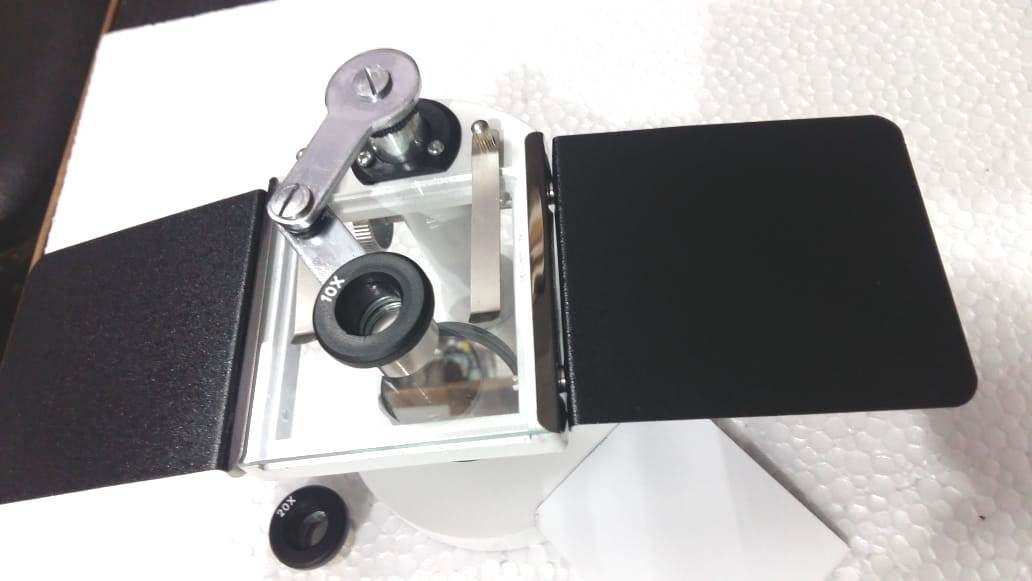

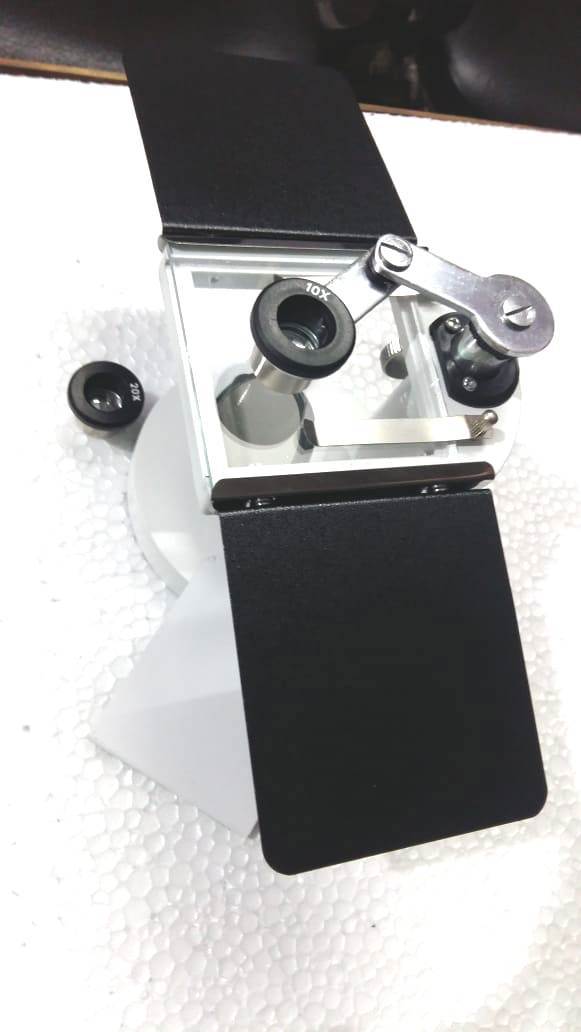

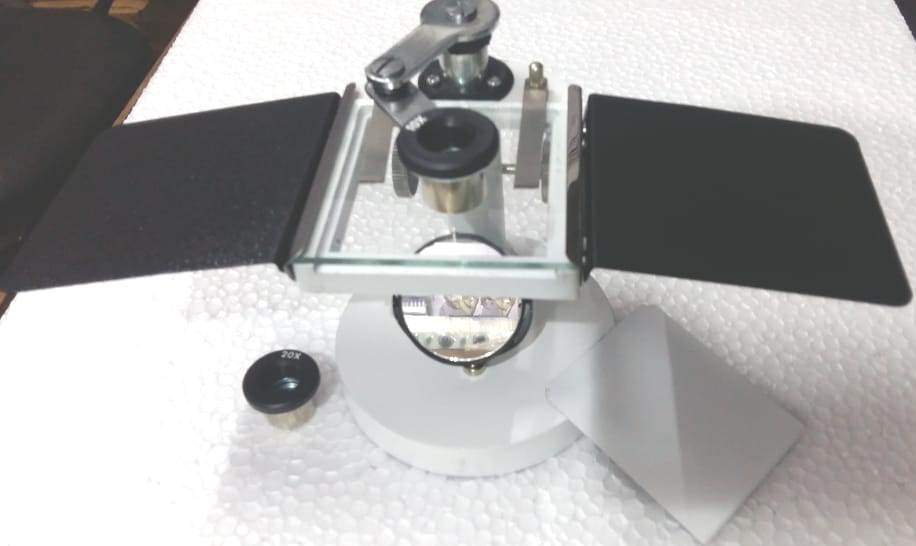

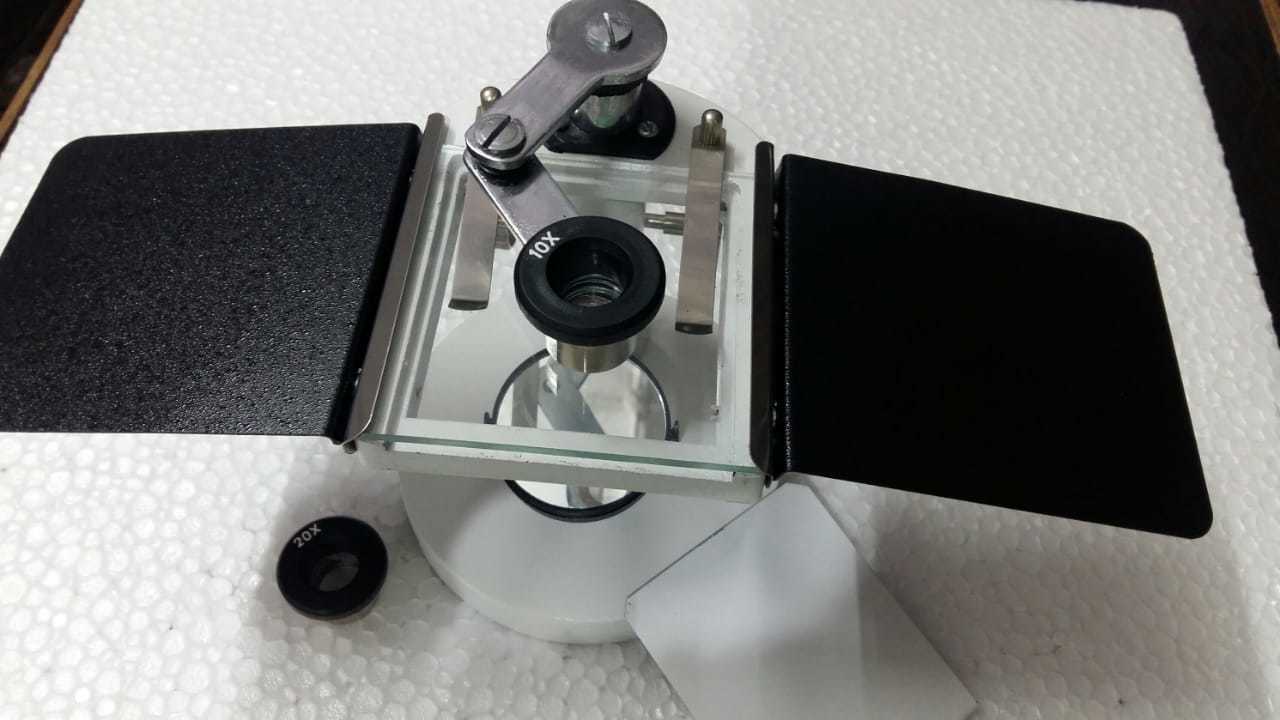

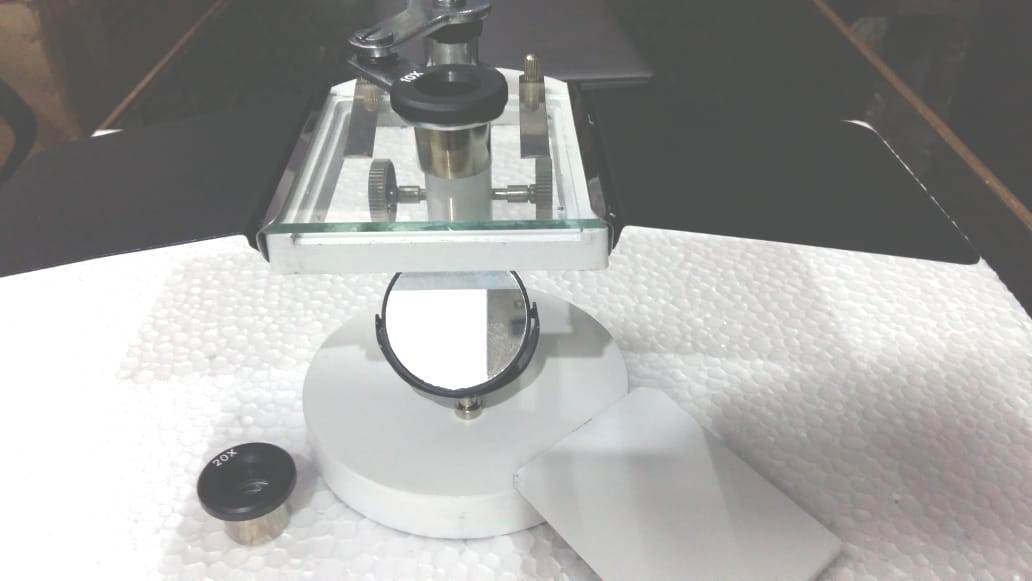

• Drawtube
• Other

• Material
• Brass

• Product Type
• Microscope

• Theory
• Biological Microscope

• Weight
• 2.5 Kilograms (kg)

• Coarse Adjustment Range
• 20mm

• Dimensions
• Base 260 x 210mm, height 470mm Millimeter (mm)

• Drawtube
• Binocular

• Eyepiece Tube
• Inclined at 30, 360 rotatable

• Eyepieces
• WF10x/18mm

• Fine Adjustment Range
• 2m

• Focal Distance
• Adjustable, up to 60mm Millimeter (mm)

• Focus Range
• Coarse: 25mm; Fine: 0.002mm division Millimeter (mm)

• Focus System
• Coaxial coarse and fine focusing

• Frame Rate
• 30 fps (Full HD)

• Illumination
• LED with fluorescence attachment

• Image Format
• JPEG, BMP, TIFF

• Interface
• USB 3.0, HDMI

• Interpupillary Distance
• 5575mm adjustable Millimeter (mm)

• Magnification
• 40x 1000x

• Objective Achromatic
• 4x, 10x, 40x(S), 100x(S, Oil)

• Resolution
• 1920 x 1080 pixels

• Spare Parts
• Replacement bulbs, filters, fuses

• Still Image Capture Resolution
• Up to 5 MP

• Theory
• Other, Fluorescence microscopy utilizes fluorescence and phosphorescence properties of substances to produce images

• Video Capture Resolution
• Full HD 1080p

• View Head
• Siedentopf Binocular/Trinocular

• Coarse Adjustment Range
• 25mm travel

• Condenser
• N.A. 0.9/0.13, Abbe condenser, adjustable aperture iris

• Dimensions
• Approx. 360mm x 250mm x 400mm (LxWxH) Millimeter (mm)

• Drawtube
• Other, Trinocular or binocular, 45 inclined, 360 rotatable

• Fine Adjustment Range
• 2mm travel, graduated 0.002mm/division

• Focus Range
• Coarse: 25mm; Fine: 2mm Millimeter (mm)

• Focus System
• Coaxial coarse and fine focusing mechanism

• Frame Rate
• 30 fps (on HDMI/USB camera models)

• Illumination
• Kohler Halogen/LED, 6V/20W halogen, adjustable intensity

• Image Format
• JPG, BMP, TIFF (with camera model)

• Interface
• USB 2.0/HDMI (on digital options), standard optical interfaces

• Interpupillary Distance
• 53mm 75mm adjustable Millimeter (mm)

• Objective Achromatic
• Plan Achromatic 4x, 10x, 40x (S), 100x (S, Oil)

• Resolution
• Up to 1920x1080 pixels (on camera models)

• Spare Parts
• Dust cover, immersion oil, power cord, stage clips, fuse, instruction manual

• Still Image Capture Resolution
• Up to 5.0 MP (on camera models)

• Video Capture Resolution
• 1080p Full HD (with digital options)

• View Head
• Trinocular, 45 inclined, 360 rotatable

• Coarse Adjustment Range
• 15 mm

• Condenser
• Fixed condenser with iris diaphragm

• Dimensions
• Approx. 350 x 260 x 450 mm Millimeter (mm)

• Drawtube
• Monocular

• Eyepiece Tube
• 45 inclined, 360 rotatable

• Eyepieces
• WF10x

• Features
• High precision measurement, robust metallic construction, interchangeable objectives and eyepieces, angle measurement attachment, cross hair for alignment.

• Fine Adjustment Range
• 0.002 mm per division

• Focus System
• Rack and pinion with fine and coarse movement

• Illumination
• Transmitted and incident LED lighting

• Interface
• Manual

• Magnification
• Up to 100x (objective 10x & 20x with eyepiece 10x)

• Objective Achromatic
• 10x and 20x achromatic objectives

• Resolution
• 0.01 mm or better

• Spare Parts
• Spare bulb, fuse, and stage glass available on request

• Theory
• Other, Tool makers microscope is an essential measuring instrument used for precise measurement and inspection of miniature and intricate mechanical parts by comparing their features with a reference scale.

• View Head
• Monocular head, inclined at 45

• Drawtube
• Trinocular

• Eyepiece Tube
• Inclined 45, 360 rotatable trinocular head

• Focus System
• Coaxial coarse and fine focus adjustment

• Illumination
• 6V 20W Halogen Lamp with intensity controller

• Interpupillary Distance
• Adjustable 55 75 mm Millimeter (mm)

• Magnification
• 40x to 400x, expandable to 1000x with suitable objectives

• Spare Parts
• Supplied with dust cover, fuse, cord, and operation manual

• View Head
• Trinocular, inclined 45, rotatable 360

• Classification
• Microscopes

• Color
• White

• Material
• Mild Steel

• Usage
• Hospital

• Voltage
• 220-240V Volt (v)

• Coarse Adjustment Range
• 10 mm coaxial drive.

• Dimensions
• Approx. 480 mm (H) x 210 mm (W) x 400 mm (D). Millimeter (mm)

• Drawtube
• Other, Trinocular head for simultaneous binocular observation and camera attachment.

• Eyepiece Tube
• Inclined at 45, rotatable 360.

• Eyepieces
• Wide field 10X paired eyepieces.

• Fine Adjustment Range
• 0.002 mm precision control.

• Focal Distance
• 160 mm (standard optical tube length). Millimeter (mm)

• Focus System
• Coaxial coarse and fine focusing mechanism with tension adjustment.

• Image Format
• JPEG, BMP, PNG (depending on camera used).

• Interpupillary Distance
• Adjustable, typically 55 75 mm. Millimeter (mm)

• Light Source
• 6V/20W Halogen bulb or 3W LED (model dependent), with variable brightness control.

• Magnification
• Standard objective configuration: 4X, 10X, 40X; total magnification up to 400X with 10X eyepieces.

• Objective Achromatic
• Infinity plan achromatic objectives: 4X, 10X, 40X (LWDLong Working Distance).

• Sensor
• Support for digital imaging sensors (camera not included as standard).

• Spare Parts
• Supplied with a set of fuses, lamp, and dust cover.

• Still Image Capture Resolution
• Up to 2.0 MP (camera dependent).

• Theory
• Other, Designed for routine and research level tissue culture microscopy, with an inverted optical system to observe living cells and tissues in culture vessels.

• Video Capture Resolution
• Up to 1080p (camera dependent).

• View Head
• Trinocular head for convenient specimen viewing and imaging.

• Color
• Black And White

• Material
• Aluminum

• Power
• 90- 220 Volt (v)

• Product Type
• Microscope

• Usage
• Laboratory

• Color
• Silver And Black

• Dimension (L*W*H)
• 13x9x6 Millimeter (mm)

• Material
• Stainless steel

• Product Type
• Microscope

• Usage
• Laboratory

• Application
• Laboratory, Hospital

• Color
• White

• Material
• Mild Steel

• Product Type
• Microscope

• Voltage
• 110-220 Volt (v)
