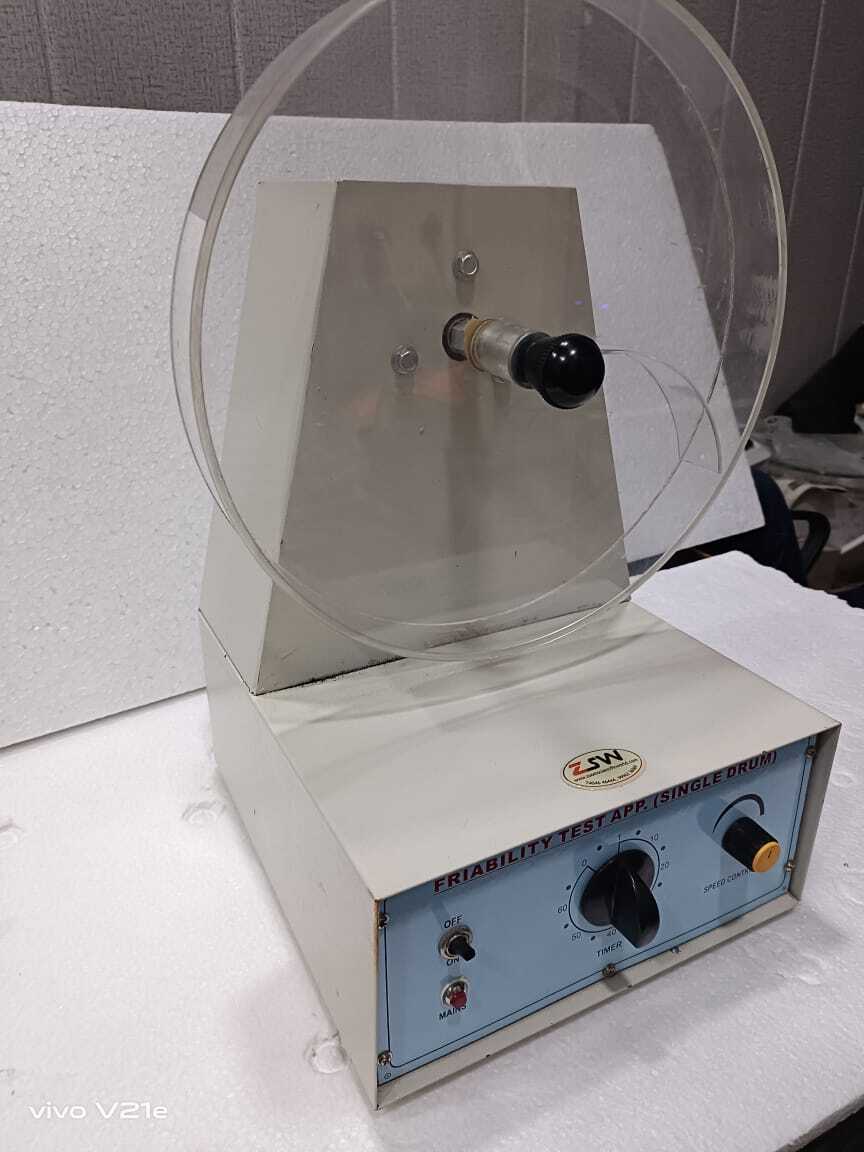

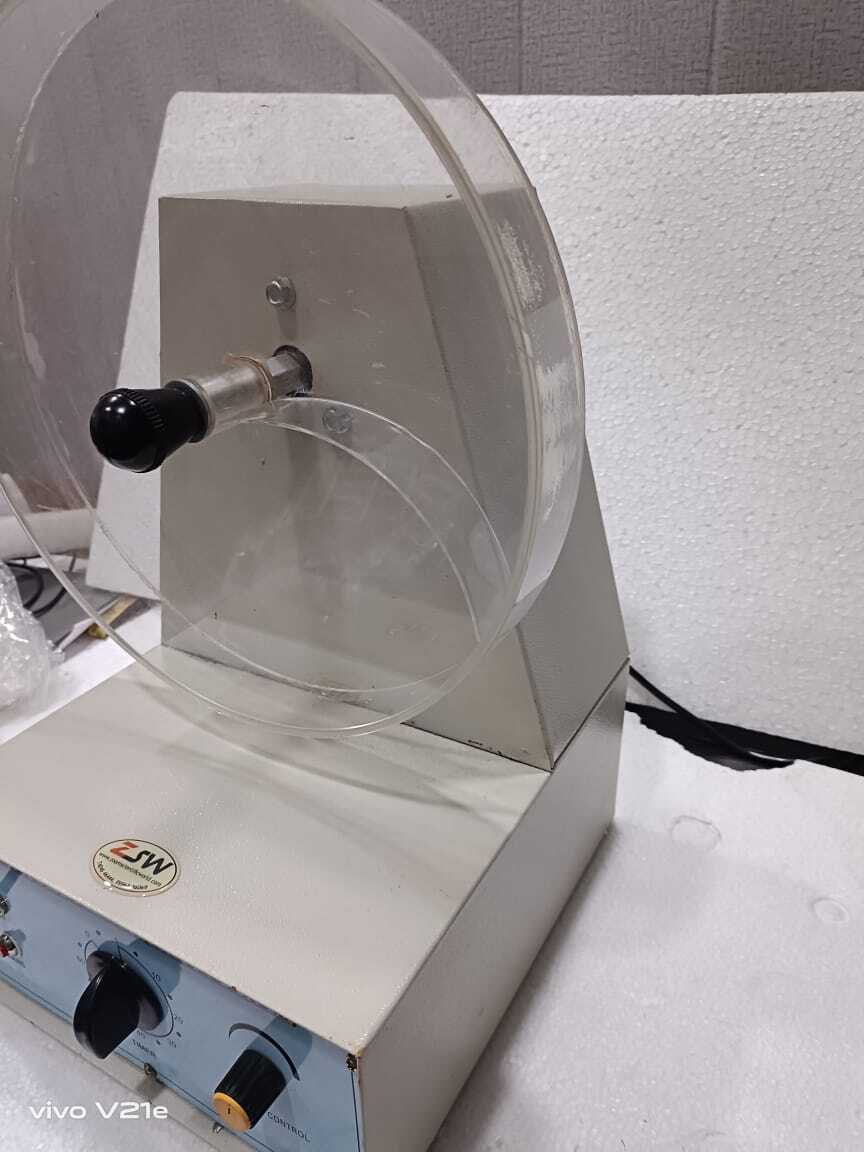

Friability Test Apparatus

Friability Test Apparatus: Used to determine the durability and abrasivness of tablets. A transparent perpex drum (made of important perpex sheet 6.4mmthick) 300mm dia × 35mm deep and white cover disc and nut, also a shaped radial fixed blade which carries the tablets along with it up to the central height and lets them of while the drum is rotating. Thus the tablets rub against each other without any hard impact. The drum rotates at the fixed speed of 30 R.P.M. by a geared motor and the rotation period is controlled by a timer (important time switch duration 1 to 15 minutes) per determined end preset. The motor unit is housed in a shaped M.S. cabinet with shaft extended on one side upon the drum rotates. Switches with neon indicators and time switch are fitted on a panel and provided work on 220 volts 50 C/s A.C.

(b)-do- same as above, but with double drum.
